Features

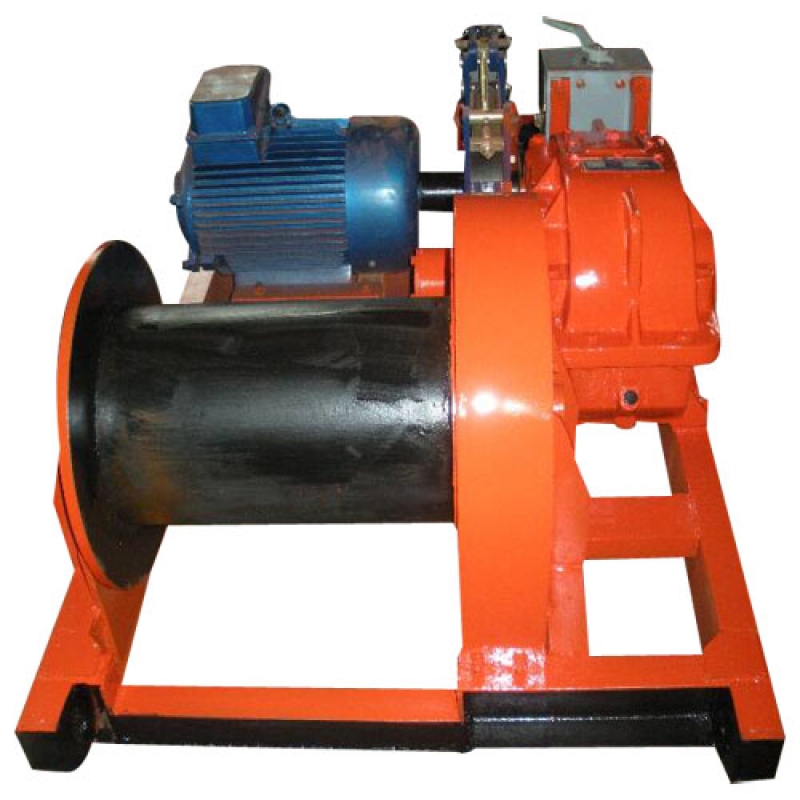

The slow building  winch series can be mainlyused in lifting , disassemble , moving and intalling
points in construction companies, diggings and workshop.
Main constructruetion features:with strong pulling power, steel cable arrange in an orderly way,with safty and reliable.
Technique parameter

ModelJM2JM3JM5JM8JM10Rated load (kg)200030005000800010000Cable speed (m/min)121010109Wire rope(mm):15.51721.52630Reduction boxTypeJZQ350JZQ350JZQ400JZQ500JZQ650Transmission ratio23.3431.523.3431.540.17Drum (mm)Diameter(ф)260310400500550Length4805107309001000Capacity(m)150180180300450motorTypeY160M-6Y160M-6YZR180L-8YZR225M-8YZR250M1-8Power(kW)7.57.5112230Rotate speed(r/min)970970685715720ArresterTJ2-200TJ2-200TJ2-300YWZ-300YWZ-300Size(cm)115 x100 x60138 x106 x65185 x135 x90205 x275 x105220 x180 x 110Weight(kg)630680140030004000

ModelJM12JM16JM20JM25JM30Rated load (kg)1200016000200002500030000Cable speed (m/min)96.67.78.58.5Wire rope( mm):3236.5394248Reduction boxTypeJZQ650JZQ750JZQ750JZQ750JZQ850Transmission ratio40.1731.531.531.523.34Drum (mm)Diameter(ф)650750750850960Length1000130183019251960Capacity(m)5001000600700650MotorTypeYZR250M2-8YZR280S-8YZR250M2-6YZR280S-6YZR280M-6Power(kW)3745455575Rotate speed(r/min)725717965969969ArresterYWZ-300YWZ-400YWZ-400YWZ-400YWZ-400Size(cm)250 x190 x 120390 x300 x245400x300x170412 x300 x200450 x300 x250Weight(kg)550075008500950011000
