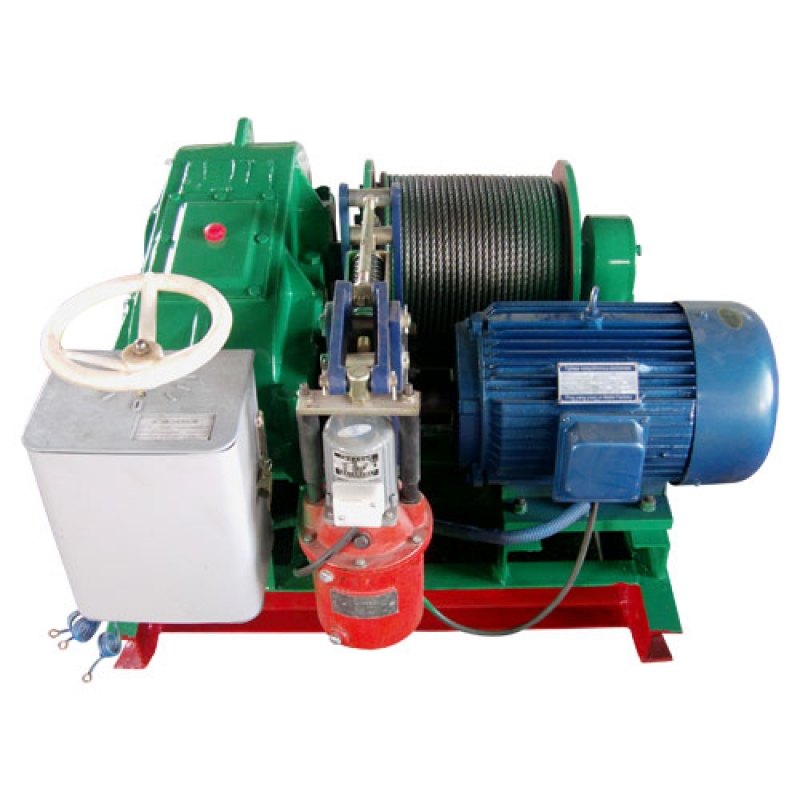

The fast Building Eleetric Winch Seroes can be widely used in construction sites for lifting ,civil engineering and mini equipments for installing.
Technique parameter
ModelJK1JK3JK5JK8JK10Rated load (kg)100030005000800010000Cable speed (m/min)2835292019Wire rope( mm):1115.5222630Reduction boxTypeJZQ350JZQ500JZQ650JZQ650JZQ750Transmission ratio31.523.3440.1723.3423.34Drum (mm)Diameter(ф)207270400500550Length3605708409001000Capacity(m)110200300300250motorTypeY132M-4YZR225M-8YZR250M1-8YZR250M1-6YZR250M2-6Power(kW)7.522303745Rotating speed(r/min)1440715720960960ArresterTJ2-200TJ2-300TJ2-300YWZ-300YWZ-400Size(cm)102x90x60156x137x90220x180x94240x180x110250x190x120Weight(kg)4601000270040005000
